ADC122S625CIMM/NOPB

数据转换 IC
  • 参考价格:¥19.94-¥39.88

更新日期:2024-04-01 00:04:00

ADC122S625CIMM/NOPB

数据转换 IC

产品简介:双通道 12 位、50kSPS 至 200kSPS、同步采样 A/D 转换器

查看详情
  • 参考价格:¥19.94-¥39.88

ADC122S625CIMM/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

ADC122S625CIMM/NOPB 中文资料属性参数

  • 制造商:National Semiconductor (TI)
  • 转换器数量:2
  • ADC 输入端数量:2
  • 结构:SAR
  • 转换速率:200 KSPs
  • 分辨率:12 bit
  • 输入类型:Voltage
  • 接口类型:Serial (SPI, QSPI, Microwire)
  • 信噪比:73.2 dB
  • 电压参考:External
  • Supply Voltage - Max:5.5 V
  • Supply Voltage - Min:4.5 V
  • 最大工作温度:+ 105 C
  • 安装风格:SMD/SMT

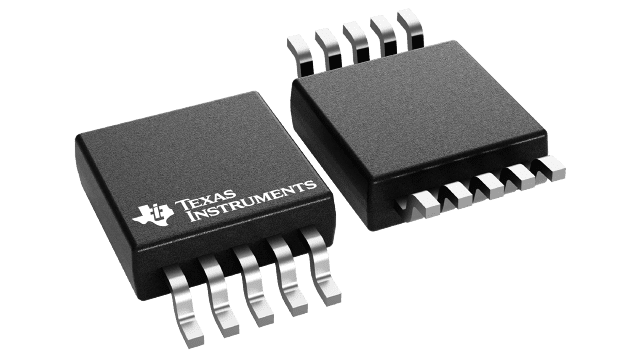

  • 封装 / 箱体:MSOP
  • 封装:Reel
  • 最小工作温度:- 40 C
  • 工作电源电压:5 V
  • 工厂包装数量:1000

产品特性

  • True Simultaneous Sampling Differential Inputs
  • Specified Performance from 50 kSPS to 200 kSPS
  • External Reference
  • Wide Input Common-Mode Voltage Range
  • Single High-Speed Serial Data Output
  • Operating Temperature Range of −40°C to +105°C
  • SPI/QSPI/MICROWIRE/DSP Compatible Serial Interface
  • Conversion Rate: 50 kSPS to 200 kSPS
  • INL: ±1 LSB (max)
  • DNL: ±0.95 LSB (max)
  • SNR: 71 dBc (min)
  • THD: -72 dBc (min)
  • ENOB: 11.25 bits (min)
  • Power Consumption at 200 kSPSConverting, VA = 5V, VREF = 2.5V: 8.6 mW (typ)Power-Down, VA = 5V, VREF = 2.5V: 2.6 µW (typ)
  • Converting, VA = 5V, VREF = 2.5V: 8.6 mW (typ)
  • Power-Down, VA = 5V, VREF = 2.5V: 2.6 µW (typ)

产品概述

The ADC122S625 is a dual 12-bit, 50 kSPS to 200 kSPS simultaneous sampling Analog-to-Digital (A/D) converter. The analog inputs on both channels are sampled simultaneously to preserve their relative phase information to each other. The converter is based on a successive-approximation register architecture where the differential nature of the analog inputs is maintained from the internal track-and-hold circuits throughout the A/D converter to provide excellent common-mode signal rejection. The ADC122S625 features an external reference that can be varied from 1.0V to VA.The ADC122S625's serial data output is binary 2's complement and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE™, and many common DSP serial interfaces. The serial clock (SCLK) and chip select bar (CS) are shared by both channels. Operating from a single 5V analog supply and a reference voltage of 2.5V, the total power consumption while operating at 200 kSPS is typically 8.6 mW. With the ADC122S625 operating in power-down mode, the power consumption reduces to 2.6 µW. The differential input, low power consumption, and small size make the ADC122S625 ideal for direct connection to sensors in motor control applications.Operation is specified over the industrial temperature range of −40°C to +105°C and clock rates of 1.6 MHz to 6.4 MHz. The ADC122S625 is available in a 10-lead VSSOP package.

ADC122S625CIMM/NOPB 电路图

ADC122S625CIMM/NOPB 电路图

ADC122S625CIMM/NOPB 电路图
