更新日期：2024-04-01
产品简介：具有三态输出的军用 8 通道 4.5V 至 5.5V 双极反相器
查看详情7801201SA 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
Texas Instruments
-
CFP20
21+ -
16
-
上海市
-
-
-
一级代理原装
7801201SA 中文资料属性参数
- 现有数量：0现货6,668Factory
- 价格：在售
- 系列：*
- 包装：管件
- 产品状态：在售
- 逻辑类型：-
- 元件数：-
- 每个元件位数：-
- 输入类型：-
- 输出类型：-
- 电流 - 输出高、低：-
- 电压 - 供电：-
- 工作温度：-
- 安装类型：-
- 封装/外壳：-
- 供应商器件封装：-
产品特性
- Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs
- Maximum tpd of 15 ns at 5 V
- 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
- PNP Inputs Reduce DC Loading
- Hysteresis at Inputs Improves Noise Margins
产品概述
The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to
improve both the performance and density of three-state memory address drivers, clock drivers, and
bus-oriented receivers and transmitters. The designer has a choice of selected combinations of
inverting and non-inverting outputs, symmetrical, active-low output-control
(G) inputs, and complementary output-control (G and
G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV
noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133
Ω.
7801201SA 数据手册
7801201SA

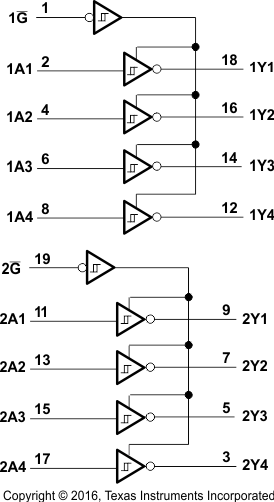

7801201SA 电路图
7801201SA 电路图
