5962F9553601VPA

Texas Instruments 放大器 IC

产品简介：超高速、高输出电流、电压反馈放大器

查看详情

参考价格：￥2,111.06

5962F9553601VPA 中文资料属性参数

制造商：National Semiconductor (TI)
通道数量：1
共模抑制比（最小值）：80 dB
输入补偿电压：1.5 mV at +/- 5 V
工作电源电压：9 V, 12 V, 15 V, 18 V, 24 V, 28 V
安装风格：Through Hole
封装 / 箱体：CDIP-8
转换速度：2000 V/us at +/- 15 V (Min)
关闭：No
最大工作温度：+ 125 C
封装：Tube
最小工作温度：- 55 C
工厂包装数量：40
电源电流：8 mA at +/- 5 V
Supply Voltage - Max：36 V
Supply Voltage - Min：5.5 V
技术：BiCOM
电压增益 dB：75 dB

产品特性

(Typical Unless Otherwise Noted)
Easy-To-Use Voltage Feedback Topology
Very High Slew Rate: 2400V/μs
Wide Unity-Gain Bandwidth: 200 MHz
−3 dB Frequency @ AV = +2: 220 MHz
Low Supply Current: 6.5 mA
High Open Loop Gain: 85 dB
High Output Current: 100 mA
Specified for ±15V and ±5V Operation
Available with Radiation GuaranteeTotal Ionizing Dose 300 Krad(Si) ELDRS Free 300 Krad(Si)
Total Ionizing Dose 300 Krad(Si)
ELDRS Free 300 Krad(Si)

产品概述

The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or −1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver.Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171 offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications.The LM7171 is built on Texas Instruments's advanced VIP III (Vertically integrated PNP) complementary bipolar process.

查看全部

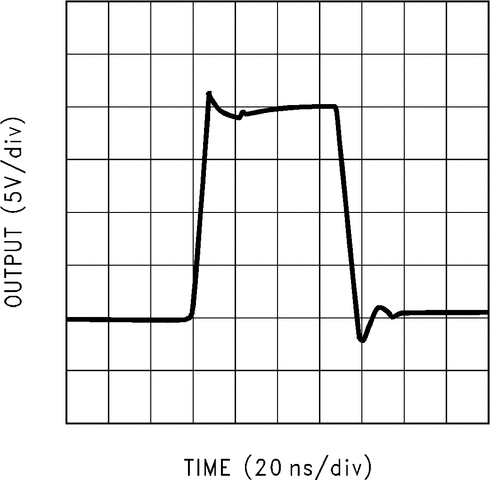

5962F9553601VPA 电路图
