5962-0051101NXD

Texas Instruments 模数转换器（ADC）

更新日期：2024-04-01 00:04:00

5962-0051101NXD

Texas Instruments 模数转换器（ADC）

产品简介：14 位、8MSPS ADC 单通道、差动输入、DSP/uP IF、可编程增益放大器、内部 S&H

查看详情

5962-0051101NXD 供应商

公司
型号
品牌
封装/批号
数量
地区
日期
说明
询价

上海三崧电子有限公司
5962-0051101NXD
Texas Instruments
HTQFP48
21+
134
上海市
-
一级代理原装

5962-0051101NXD 中文资料属性参数

现有数量：0现货2,624Factory
价格：在售
系列：*
包装：卷带（TR）
产品状态：在售
位数：-
采样率（每秒）：-
输入数：-
输入类型：-
数据接口：-
配置：-
比率 - S/H:ADC：-
A/D 转换器数：-
架构：-
参考类型：-
电压 - 供电，模拟：-
电压 - 供电，数字：-
特性：-
工作温度：-
封装/外壳：-
供应商器件封装：-
安装类型：-

产品特性

14-Bit Resolution
1, 3, and 8 MSPS Speed Grades Available
Differential Nonlinearity (DNL) ±0.6 LSB Typ
Integral Nonlinearity (INL) ±1.5 LSB Typ
Internal Reference
Differential Inputs
Programmable Gain Amplifier
µP Compatible Parallel Interface
Timing Compatible With TMS320C6000 DSP
3.3-V Single Supply
Power-Down Mode
Monolithic CMOS Design
APPLICATIONS xDSL Front Ends Communication Industrial Control Instrumentation Automotive
xDSL Front Ends
Communication
Industrial Control
Instrumentation
Automotive

产品概述

The THS1401, THS1403, and THS1408 are 14-bit, 1/3/8 MSPS, single supply analog-to-digital converters with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.Implemented with a CMOS process, the device has outstanding price/performance and power/speed ratios. The THS1401, THS1403, and THS1408 are designed for use with 3.3-V systems, and with a high-speed uP compatible parallel interface, making them the first choice for solutions based on high-performance DSPs like the TI TMS320C6000 series.The THS1401, THS1403, and THS1408 are available in a TQFP-48 package in standard commercial and industrial temperature ranges. The THS1401, THS1403, and THS1408 are available in a PQFP-48 package in automotive temperature range, and the THS1408 is available in a PQFP-48 package in military temperature range.

查看全部

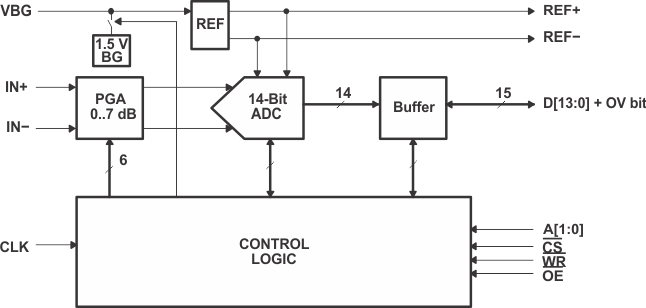

5962-0051101NXD 电路图

5962-0051101NXD 相关产品
